XD-21-860Xenon Test Chamber

Xenon Test Chamber

Product Number: XD-21-860

Brand Name:MODERNER

Product Origin: SHANGHAI

Purchasing Heat:616

Standard: ISO 11341,ISO 12040,ISO 16474-1,ISO 16474-2,ASTM D3451,ASTM D3794,ASTM D4303,ASTM D5010,ASTM D6577,ASTM D6695,ASTM G151,ASTM G155,ISO 4892-1 ,ISO 4892-2,SAE J2412,SAE J2527

XD-21-860 Xenon Test Chamber can meet with all standards requirements from different fields, it can hold 22 pieces samples, not only has spray function, but also can control the relative humidity of working room.

Click to see the big picture

Product Details

 Ⅰ. Introduction:

XD-21-860 is a powerful, highly cost-effective, easy to use and convenient to maintain xenon test chamber. It uses a air-cooled xenon lamp and relevant daylight filter (both are imported from America ),to simulate more real and much better the full spectrum sun light of outdoor, ensure the test results obtained from laboratory have a perfect correlation with outdoor application. Furthermore, the samples holder is designed with a special rotating drum to ensure each sample can obtain the same and uniform irradiance during the whole test.

XD-21-860 Xenon Test Chamber can meet with all standards requirements from different fields, it can hold 22 pieces samples, not only has spray function, but also can control the relative humidity of working room. Operator can set all required test parameters Irradiance, test time, BPT, BST etc through the touch screen, and can check its running status at any time. All running parameters can be exported to computer directly through the USB interface.




Ⅱ. Standards compliant:

ISO 11341《Paints and varnishes-Artificial weathering and exposure to artificial radiation--Exposure to filtered xenon-arc radiation》

ISO 12040 《Graphic Technology - Prints and Printing Inks-Assessment of Light Fastness Using Filtered Xenon Arc Light 》

ISO 16474-1 《Paints and varnishes -- Methods of exposure to laboratory light sources -- Part 1: General guidance》

ISO 16474-2 《Paints and varnishes -- Methods of exposure to laboratory light sources -- Part 2: Xenon-arc lamps》

ASTM D3451 《Standard Guide for Testing Coating Powders and Powder Coatings》

ASTM D3794《Standard Guide for Testing Coil Coatings》

ASTM D4303 《 Standard Test Methods for Lightfastness of Pigments Used in Artists' Paints》

ASTM D5010 《Standard Guide for Testing Printing Inks and Related Materials》

ASTM D6577 《Standard Guide for Testing Industrial Protective Coatings》

ASTM D6695 《Standard Practice for Xenon-Arc Exposures of Paint and Related Coatings》

ASTM G151《Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that  Use Laboratory Light Sources》

ASTM G155《Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials》

ISO 4892-1 《Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance》

ISO 4892-2《Plastics - Methods of Exposure to Laboratory Light Sources - Part 2: Xenon-arc lamps》

SAE J2412 《Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Xenon-Arc Apparatus》

SAE J2527 《Accelerated Exposure of Automotive Exterior Materials Using a Controlled Irradiance Xenon-Arc Apparatus》


Ⅲ. Characters:

◆ Xenon lamps imported from America can ensure the test results have a good repeatability and comparability.

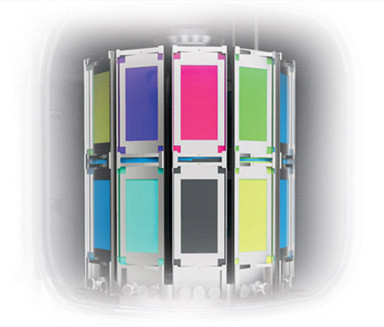

◆ Special rotating-drum design for samples holder ensure each sample can obtain the same and uniform irradiance during the whole test.

◆ Irradiance energy can be accurately controlled. The "Closed-Loop" control system can automatically compensate the change of light intensity caused by ageing or other factors.

◆ Can choose narrow band (at 340nm or at 420nm)or broad band(from 300nm~400nm or from 300nm~800nm)to control irradiance.

◆ Affordable air-cooled xenon lamp, the lifetime can reach 1,500 hours.

◆ Can choose three different filters(Daylight, Window glass, Extended UV) to meet different test requirements.

◆ The test procedures can be programmed freely; can set 10 programs and save 6 predetermined programs in one time. Every program includes up to 10 segments for setting parameters.

◆ Can set and control precisely and automatically the relative humidity of working room.

◆ Can set the cumulative energy (total irradiance energy)obtained by sample to finish a test procedure.

◆ With spray function, can set spray time and spray interval time.

◆ Users can easily calibrate and adjust the irradiance or the black panel temperature by themselves.

◆ With High precision Pt100 Temperature sensor. BPT(black panel temperature), BST(black standard temperature)and working room temperature can be set and controlled precisely and automatically during the whole process

◆ Alarm and protection function:Over temperature(BPT,BST,Working room), big deviation of irradiance,shortage of spraying water, abnormal lamp power,big error of humidity.

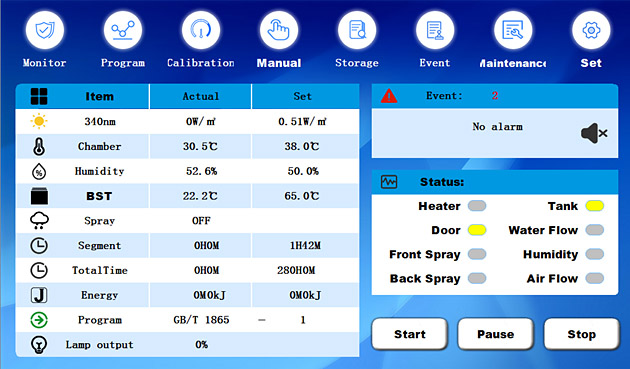

◆ Touch screen and user-friendly operation interface allow operator to set the test parameters and monitor all the test process easily.

◆ Real-time data can be collected and recorded. The incidental USB connector allow users to download the test data(EXCEL format)directly, achieving unattended operation.




Ⅳ.Main Technical Parameters:

Xenon Lamp

One 1.8 kW xenon lamp

Filter

Daylight filter

Also can choose extended UV filter or window glass filter

Lamp Lifetime

Near 1,500 hours

Exposure Area

2,200 cm2

(can put 22 pcs samples of 150×70mm size)

Adjustable Irradiance Range

0.3~0.75 W/m2 (Single point of control:340nm)

0.5~1.35 W/m2 (Single point of control:420nm)

30 W/m2~90 W/m2 (Full spectrum :from 300~400nm)

310 W/m2~780 W/m(Full spectrum :from 300~800nm)

Controlling irradiance point

340nm or 420nm or 300nm~400nm

show at the same time

Adjustable Black Panel

Temperature Range

RT~100℃

Adjustable Working room Temperature Range

RT~65℃

Adjustable relative humidity
of working room

10%~75%(Light);10%~95%(Dark)

Overall Size

860×800×1770

Net Weight

200 KG

Total Machine Power

5.5 KW

Power Supply

AC 380VThree-phase four-wire system/ 50HZ

Max. Current 16 A

Requirements of Compressed air

Cleanoilless compressed air with 0.5MPa pressure

Max. air supply is near 60L/min. Average air consumption is 10L/min30L/minDepends on testing standard



Ⅴ. Configuration list:

Name

Quantity

Template frame

11(Installed in the machine)

Template fixing clamp spring

22(Installed in the machine)

Temperature sensor fixing frame
(including PT100)

1(Installed in the machine)

Blackboard thermometer

1(Installed in the machine)

Black standard thermometer

1(Installed in the machine)

Xenon lamp tube

1(Installed in the machine)

Filter

1(Installed in the machine)

Panel (aluminum plate)

22(Installed in the machine)

Instructions

1

Certificate

1

Water filter plastic wrench

1



Ⅵ. Ordering Information:

Type

Name

XD-21-860

Xenon Test Chamber
